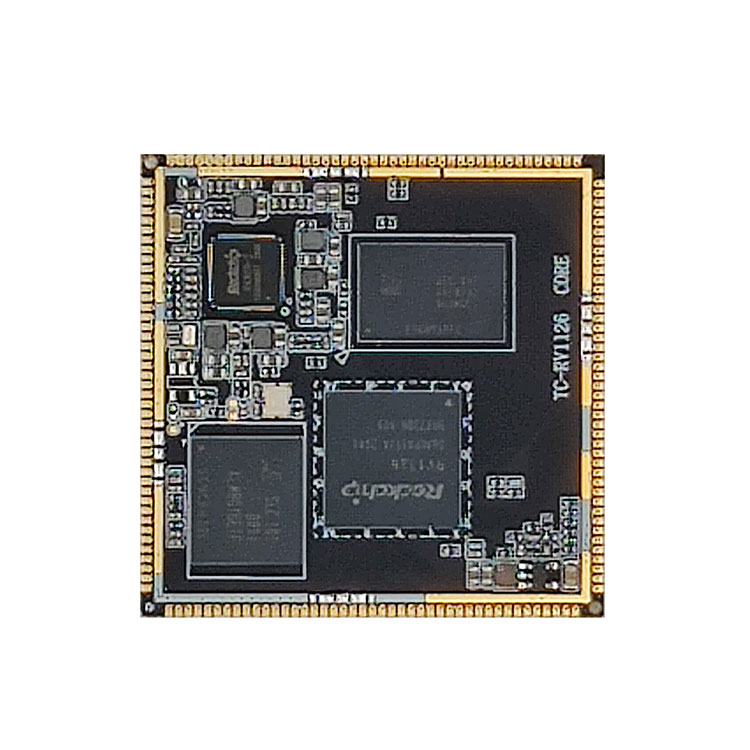

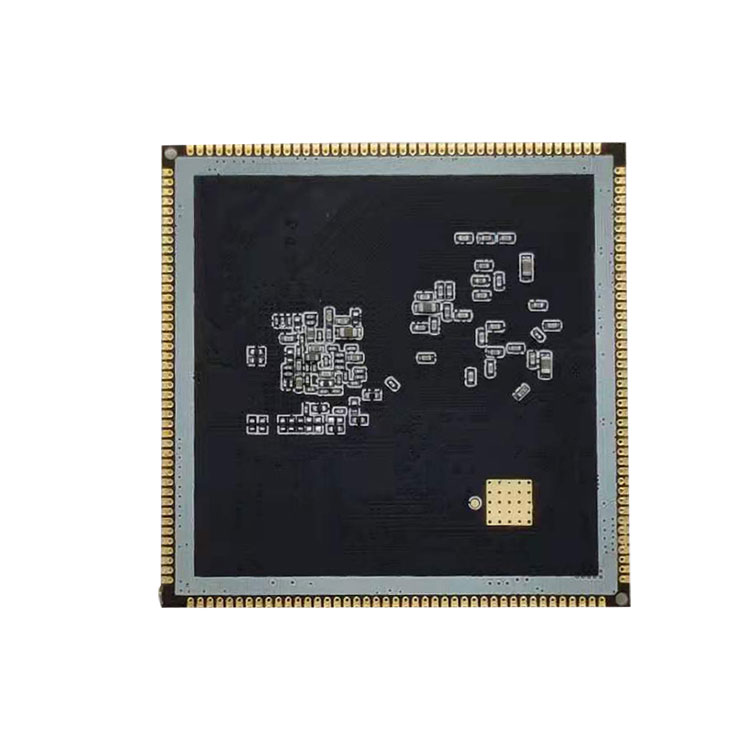

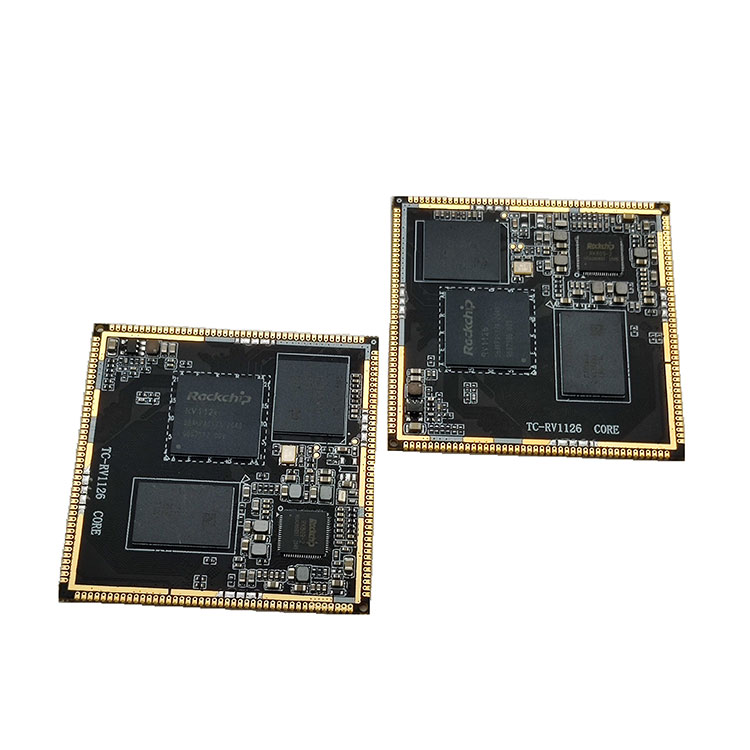

TC-RV1126 AI Core Board Para sa Stamp Hole: Rockchip RV1126 AI Core Board 14nm quad-core 32-bit A7 low-power AI vision processor RV1126, built-in 2.0Tops neural network processor NPU. Ang built-in na Video CODEC video codec, suportahan ang 4K H.264/H.265@30FPS at multi-channel video codec. Ang open source platform core boards at development boards ng Thinkcore
RV1126 |
RV1109 |
·Quad core ARM Cortex-A7 at RISC-V MCU |
Dual-core ARM Cortex-A7 at RISC-V MCU |
·250ms Mabilis na Pagsisimula |
250ms Mabilis na Pagsisimula |
·2.0Tops NPU |
1.2Tuktok NPU |
·14M ISP na may 3F HDR |
5M ISP na may 3F HDR |
·Suporta ng 3 camera input nang sabay-sabay |
Suporta ng 3 camera input nang sabay-sabay |
·Ang pag-coding at pag-decode ng 4K H.264 / H.265 video |
5M H.264 / H.265 video coding at decoding |
Mga parameter ng istruktura |
|
Panlabas |
Form ng hole ng selyo |
Laki ng pangunahing board |
48mm * 48mm * 1.2mm |
Dami |
172 PIN |
Layer |
layer 6 |
Parameter ng pagganap |
|
CPU |
Ang Rockchip RV1126 Quad-core ARM Cortex-A7 32-bit low-power AI vision processor, naorasan sa 1.5GHz |
NPU |
2.0Tops, na may malakas na pagiging tugma sa modelo ng network, sinusuportahan ang TensorFlow / MXNet / PyTorch / Caffe, atbp. |
RAM |
Karaniwang 1GB LPDDR4, opsyonal na 512MB o 2GB |
Memorya |
Karaniwan 8GB, 4GB / 8GB / 16GB / 32GB emmc opsyonal |
Pamamahala ng kuryente |
RK809-2 PMU power management unit |
Pag-decode ng video |
Ang pag-decode ng video ng 4K H.264 / H.265 30fps |
Pag-encode ng video |
Ang pag-encode ng video ng 4K H.264 / H.265 30fps |
sistema |
Linux |
supply ng kuryente |
Input boltahe 5V, rurok kasalukuyang 3A |
Mga tampok sa hardware |
|
ipakita |
Suportahan ang interface ng MIPI-DSI, 1080P @ 60FPS |
Audio |
8-channel I2S (TDM / PDM), 2-channel I2S |
Ethernet |
Suporta ng 10/100 / 1000Mbps Ethernet interface |
wireless network |
Pagpapalawak sa pamamagitan ng interface ng SDIO |
Webcam |
Sinusuportahan ang sabay na pag-input ng 3 camera: 2 MIPI CSI (o LVDS / sub LVDS) at 1 DVP (BT.601 / BT.656 / BT.1120) Suportahan ang 14 milyong ISP 2.0 na may 3 mga frame HDR |
Peripheral interface |
USB2.0 OTG, USB2.0 HOST Interface ng Gigabit Ethernet, SDIO 3.0 * 2 8-channel I2S na may TDM / PDM, 2-channel I2S UART * 6, SPI * 2, I2C * 6, GPIO, CAN, PWM |
Mga katangiang elektrikal |
|
Boltahe ng pag-input |
5V / 3A |
Temperatura ng imbakan |
-30 ~ 80 degrees -20 ~ 60 degree |
Temperatura ng pagpapatakbo |
-20 ~ 60 degree |
